No stripping, no tools – insert, press, done. Cable position visible before closing – avoid errors. Pluggable and separable at any time – ideal for testing and troubleshooting. Pluggable & separable – ideal for testing and troubleshooting.

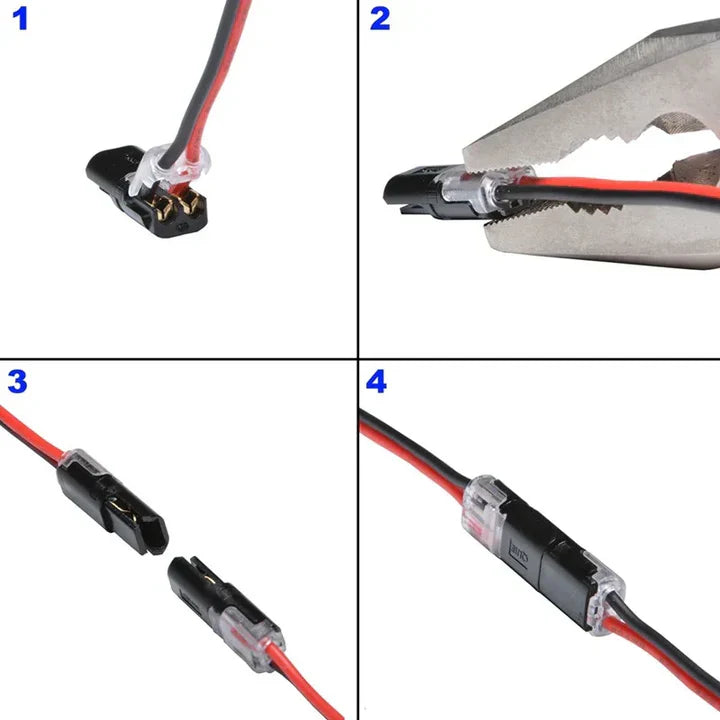

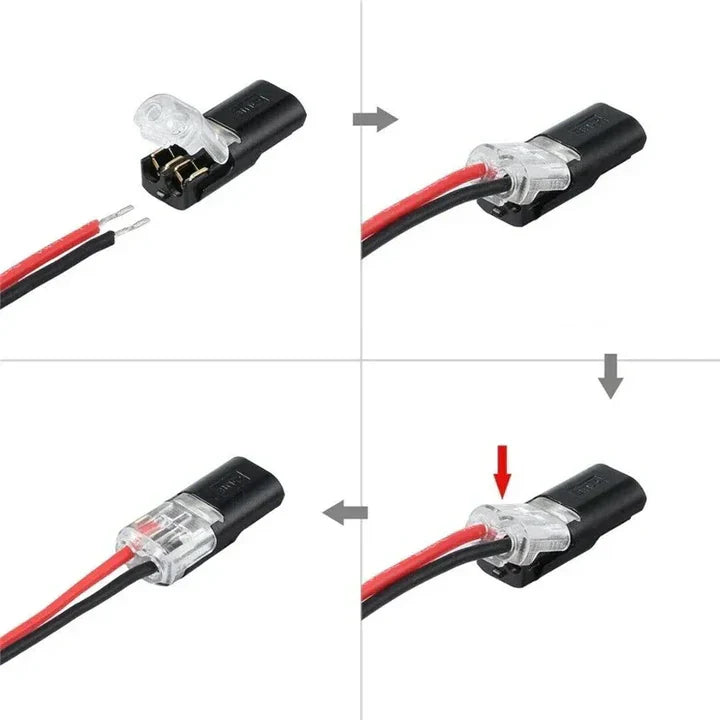

Stripping cables before every connection takes time and can cause errors. These 2-pole cable connectors skip this step entirely — insert the cable into the open connector, press with pliers, and the internal contacts pierce the insulation directly for a reliable connection.
The transparent viewing window lets you check the cable position before closing — so you know the connection is correct before securing it. The plug-socket design allows the connection to be separated and reconnected without tools at any time — convenient for testing, troubleshooting, or temporary setups.
Compatible with 22–18 AWG cables (0.34–0.75 mm²), the compact ABS housing keeps both poles cleanly separated and polarity-safe — for LED strips, vehicle lighting, and low-voltage home installations.
Add this product to your cart now to have it conveniently delivered to your home.
You will love this
- No stripping needed – piercing contacts make the connection directly through the insulation
- Transparent viewing window – check cable position before closing to avoid errors from the start

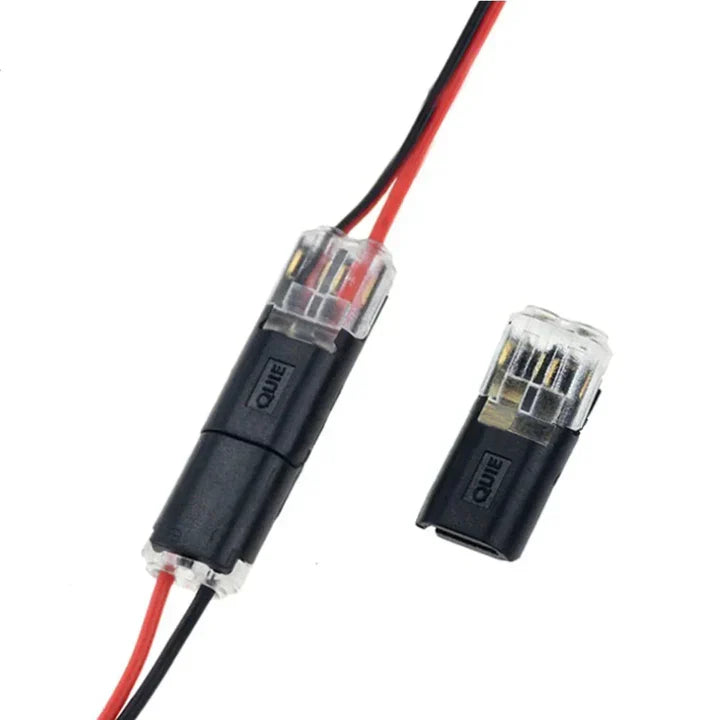

- Pluggable plug-socket design – can be separated and reconnected without tools at any time
- Compact and polarity-safe – double-channel housing keeps positive and negative cables visually separated

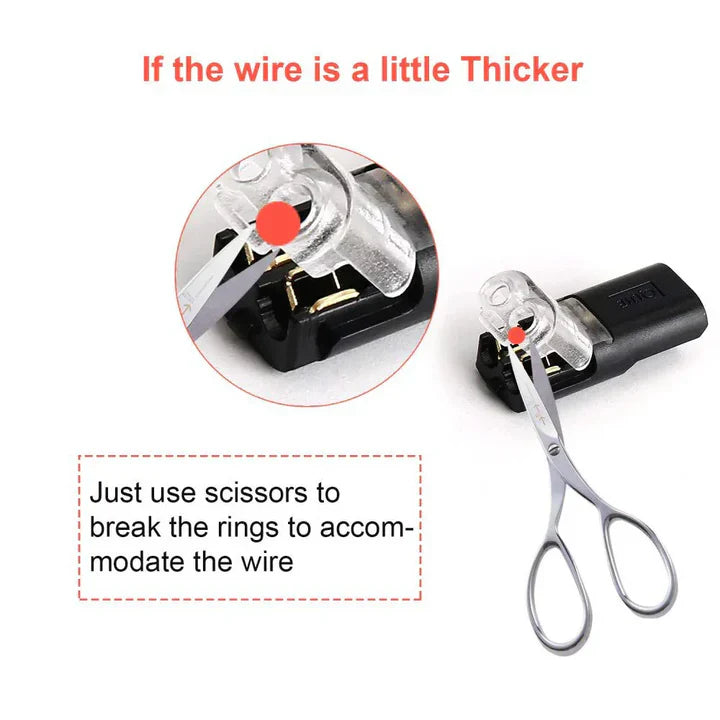

- Adjustable for slightly thicker cables – small holding ribs can be removed with scissors
- For 22–18 AWG (0.34–0.75 mm²) – suitable for solid and stranded wires
Technical data
- Material: ABS housing (black), transparent polycarbonate cover

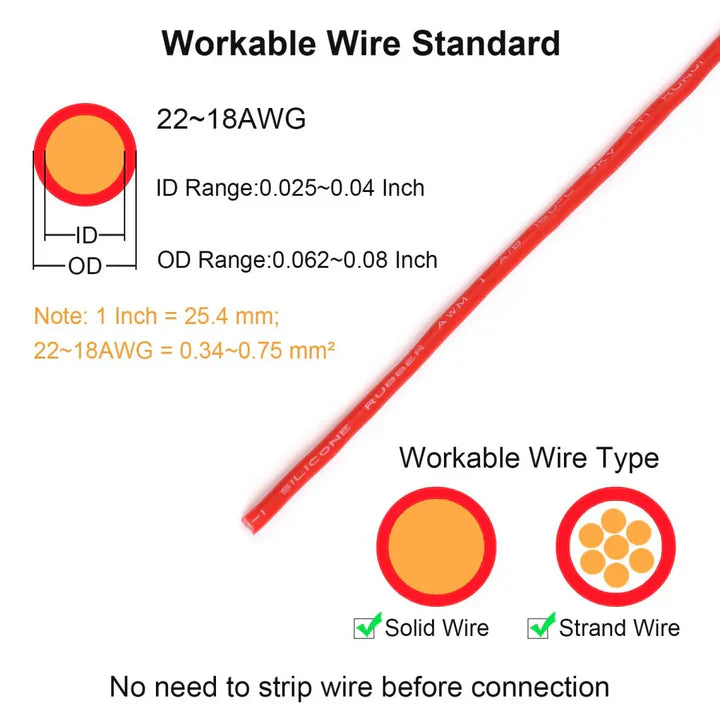

- Cable cross-section: 22–18 AWG (0.34–0.75 mm²)
- Cable inner diameter: 0.64–1.0 mm
- Cable outer diameter: 1.57–2.0 mm
- Connector dimensions: 22.4 mm × 9.2 mm
- Cable type: Solid and stranded wires
- Connection method: Insulation piercing, no stripping required

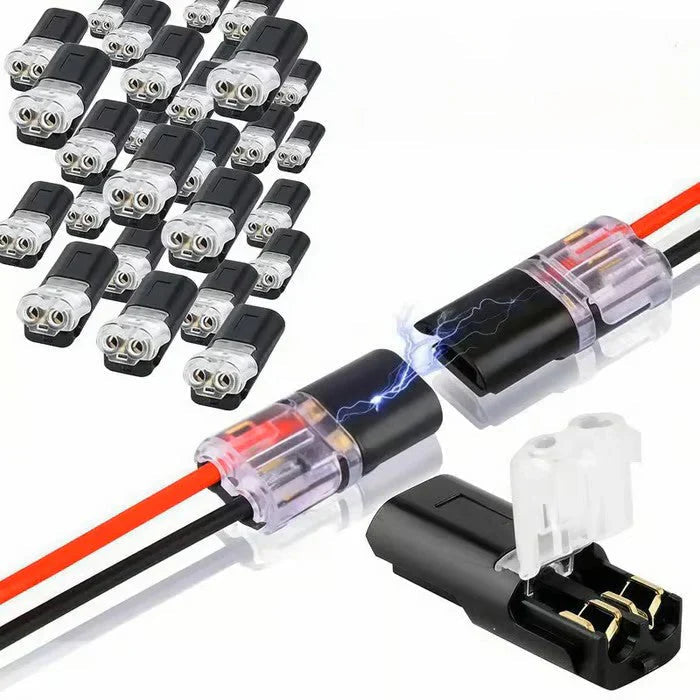

- Design: Pluggable 2-pole double connector (plug + socket, separable)
- Scope of delivery: 50 connectors (25 plugs + 25 socket halves) + 1 voltage tester
- Notes: For low-voltage and household installations only. Not a replacement for certified components in mains voltage installations. Keep out of reach of children.
